Industrial Polyester Woven Filter Cloth for Filter Element
Industrial polyester woven filter cloth for filter element Descripiton 1) Nonwoven fabrics,Geo-textile Bag 2) Nonwoven N
Basic Info.
| Model NO. | JD436 |
| Width | 70-170cm |
| Weight | 350G/M2 |
| Weave | Plain |
| Usag | Liquid Filter,Solid Filter,Powder Filter etc |
| Air Permeability | 37L/M2*S |
| Composition | PP/PE Opptional |
| Transport Package | Plastic or Customed |
| Specification | 621 |
| Trademark | SINYO |
| Origin | China |
| HS Code | 5911400000 |
| Production Capacity | 1000000square Mtrs/Month |
Product Description

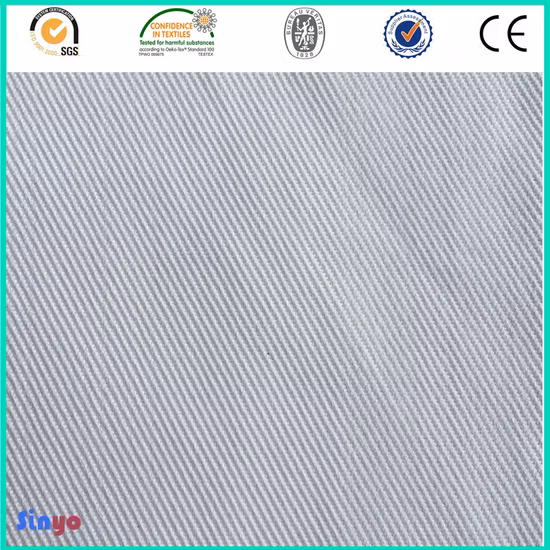

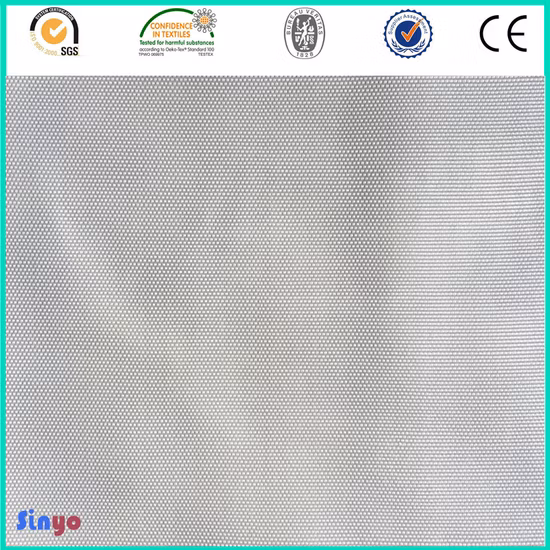

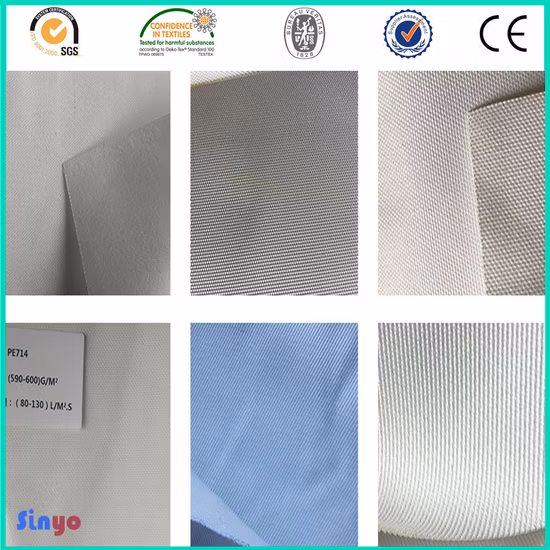

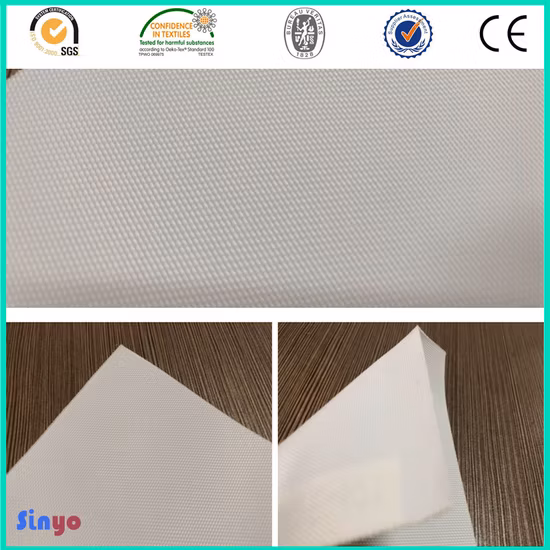

Industrial polyester woven filter cloth for filter elementDescripiton
| Material | 100% polyester |
| Weight(g/m2) | 350 |
| Thickness(mm) | 0.47mm |
| Air permeability (L/m2s) | 32 |
| Breaking strength(N/5×20cm) | warp>6718 weft>5421 |
| Tensile Elongation(%) | warp≤35 weft≤50 |
| Working temperature(°C) | Continues 200,Instant 220 |
| Hydrolyzation resistant | excellent |
| Alkali resistant | excellent |
| Acid resistant | excellent |
| Resistance to Oxidation | restricted |
| Finish treatment | Heating Setting,Antistatic |
| Model no | breaking strength(N/5*20CM) | warp/weft( /10cm) | thickness(mm) | weight | permeability | fabric texture |
| 521 | 2608/2050 | 214.8/150.8 | 0.79 | 302 | 216.5 | twill |
| 522 | 2104/1633 | 244/173 | 0.41 | 155 | 73.44 | plain weave |
| 534 | 2501/1894 | 193.6/100 | 0.99 | 368 | 41.2 | plain weave |
| 4212 staple fiber | 2672/1342 | 236.4/123.2 | 1.34 | 389 | 85.2 | twill |
| 700A | 3426.6/2819.4 | 204/106 | 0.7 | 350 | 117.9 | plain weave |
| 700B | 4648/2866 | 118/114 | 0.59 | 280 | 254.2 | twill |
| 700AB | 6865.4/416.7 | 378/235 | 1.15 | 580 | 82 | twill +plain weave |
| 750A(840A) | 4466/2905 | 168/131 | 0.85 | 330 | 42 | plain weave |
| 750B(840B) | 5234/3489 | 256/141 | 0.99 | 420 | 76 | twill |
| 750AB(840AB) | 6718/5421 | 333.8/204.4 | 1.36 | 490 | 24.5 | plain weave |
| 840-1 | 5275/3948 | 252/146 | 0.9 | 440 | 45.5 | twill |
| 840-2 | 5928/4086 | 283/142 | 1 | 490 | 40.7 | twill |
| 840-3 | 6282/4858 | 311/134 | 1.11 | 520 | 20.2 | twill |
| 858 | 4418/3618 | 251/124 | 0.88 | 380 | 240.7 | twill |
| 4218 | 8568/5427 | 456/94 | 1.32 | 660 | 38.4 | twill |
| 4135 | 6797/2508 | 346/83 | 1.02 | 510 | 19.12 | plain weave |
| 4422 | 2643/1514 | 181/94 | 1.18 | 480 | 17.86 | twill |
| 1000A | 5585/4089 | 204/102 | 0.85 | 435 | 9.83 | plain weave |
| 1000B | 6636/1481 | 204/110 | 0.79 | 430 | 21.49 | twill |
| 1500-1 | 5628/3701 | 251/118 | 1.42 | 725 | 29.38 | twill |
| 108B | 8721/4642 | 503/133 | 1.1 | 600 | 13.6 | mixed weave |
| 108C | 8367/4797 | 504/177 | 1.03 | 600 | 22.96 | satin weave |
| Polypropylene fiber | 10398/ | 448/141 | 0.9 | 900 | 8.2 | heavy plain weave |
| conveyor belt | 8006 |
1) Nonwoven fabrics,Geo-textile Bag
2) Nonwoven Needle felts
3) Woven filter cloths
4) Air Slide Belts
5) Dust&Liquid filter bag
6) PE/PA, Stainless steel Filter Mesh Fabrics
7) Filtration Parts
8) Polyester Mesh Belt Fabric
Application
